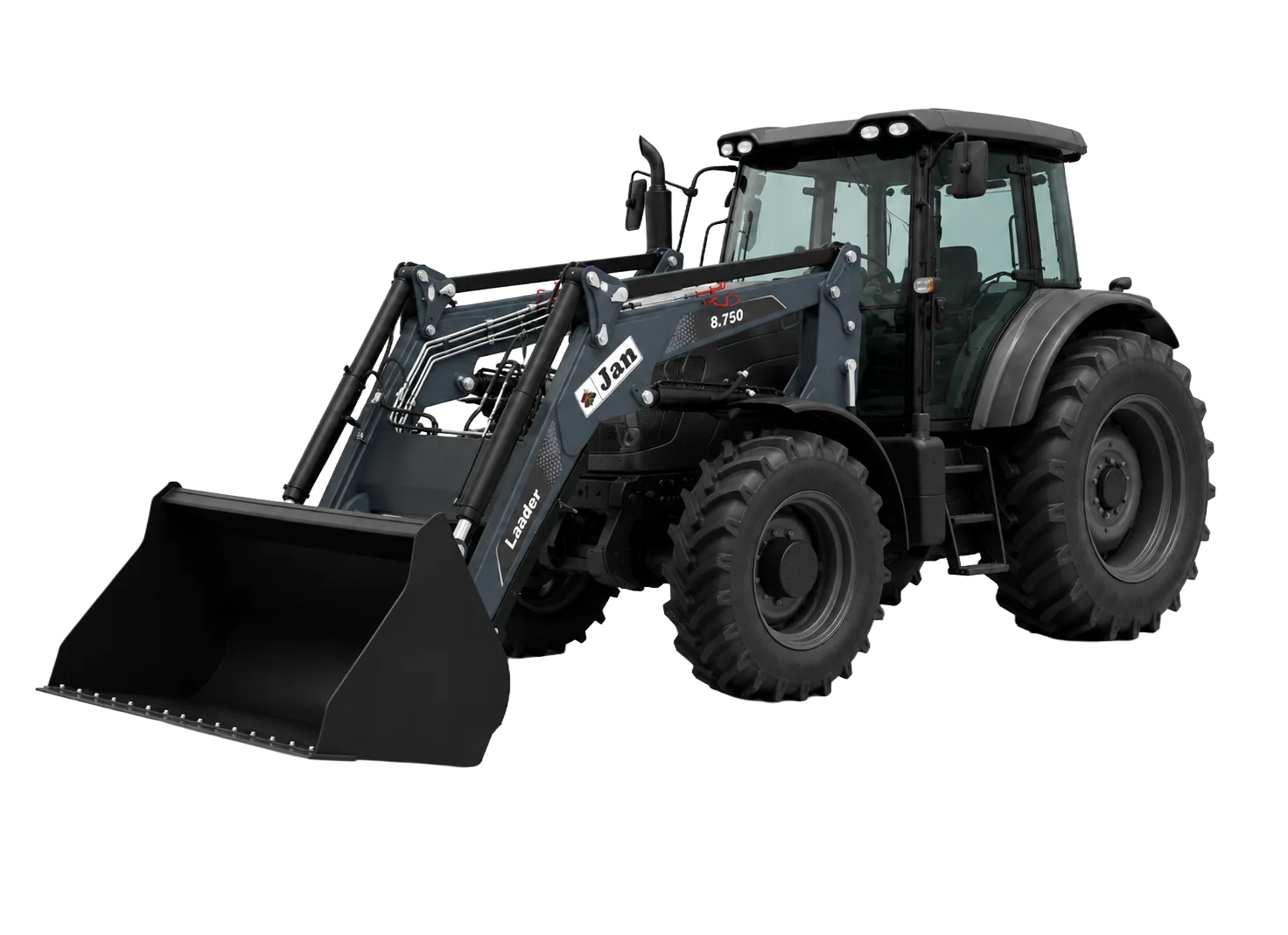

Laader Laader
Laader Laader
Robustness
Quick coupling of the implement to the tractor
Quick accessory change system
Hydraulic system constructed with metal pipes and anti-corrosive material
Shell (Standard)
Front Blade
Big-Bag Hoist
Silage Fork
Log Fork
Hay Fork
Baler
Pallet Forklift
Kit Joystick
-webp-1757423805333.webp)
Self-leveling bucket movement allows loads to be lifted in perfect balance;
Bucket geometry with rounded rear and greater opening angle provides greater structural strength, lower coefficient
of friction with the ground, and significant reduction of material accumulated on the inner faces of the bucket;
Compact structure resulting in greater strength and lower weight for the assembly, consequently providing better handling when performing
maneuvers;
Reduced distances between articulation points increase mechanical strength, reduce the lever effect, and result in greater stability and agility
during operation; Self-leveling bucket movement allows loads to be lifted in perfect balance;
Quick coupling system between the implement and the tractor, allowing a single person to perform the operation quickly and safely without effort;
Quick accessory change system, activated by a lever, allowing a single person to perform the operation.
Adapters available for the entire line of Brazilian tractors from 2000 onwards and those manufactured before 2018 (upon request). Constructively designed, modern, and easily accessible, preventing damage to the tractor structure.
The adapter is designed to be easily installed on the tractor's rear hitch, allowing for the attachment of various implements such as plows, harrows, sprayers, and other equipment.
| Model | Power required (hp) | Recommended tractor | Lifting capacity (kg) | Lift height (m) | Volumetric capacity of the bucket (m³) | Bucket width (m) | Loading angle | Tilt angle | Approximate weight (kg) | Bucket weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 5.000 MA | 70 a 100 | 4 cilindros | 1.200 | 3,40 a 3,70 | 0,57 | 1,90 | 25° | 35° | 550 | 300 |
| 5.000 | 70 a 100 | 4 cilindros | 1.200 | 3,40 a 3,70 | 0,57 | 1,90 | 55° | 62° | 620 | 300 |
| 8.500/8.750 | 100 a 120 | 4 cilindros | 1.500 | 3,70 a 4,00 | 0,65 | 2,20 | 55° | 62° | 690 | 343 |
| 10.000/10.500 | 120 a 170 | 6 cilindros | 1.800 | 4,00 a 4,30 | 0,80 | 2,20 | 55° | 62° | 730 | 371 |
| 12.000 | Acima de 180 | 6 cilindros | 2.500 | 4,10 a 4,50 | 1,00 | 2,20 | 55° | 60° | 975 | 495 |
1 - Capacity specified with the bucket at maximum lift height. Heights lower than specified allow for increased lifting capacity.
2 - Lift height varies according to tractor model and type of tire used.
