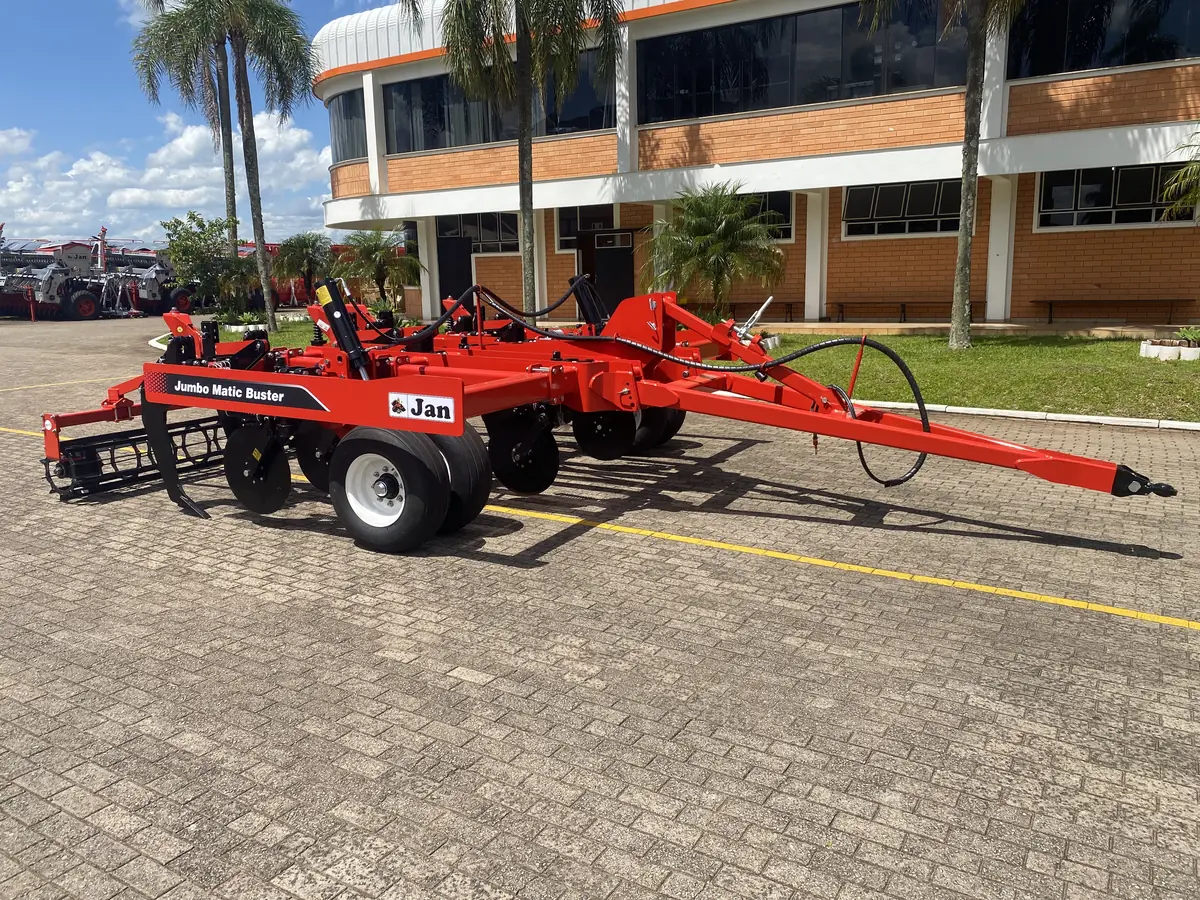

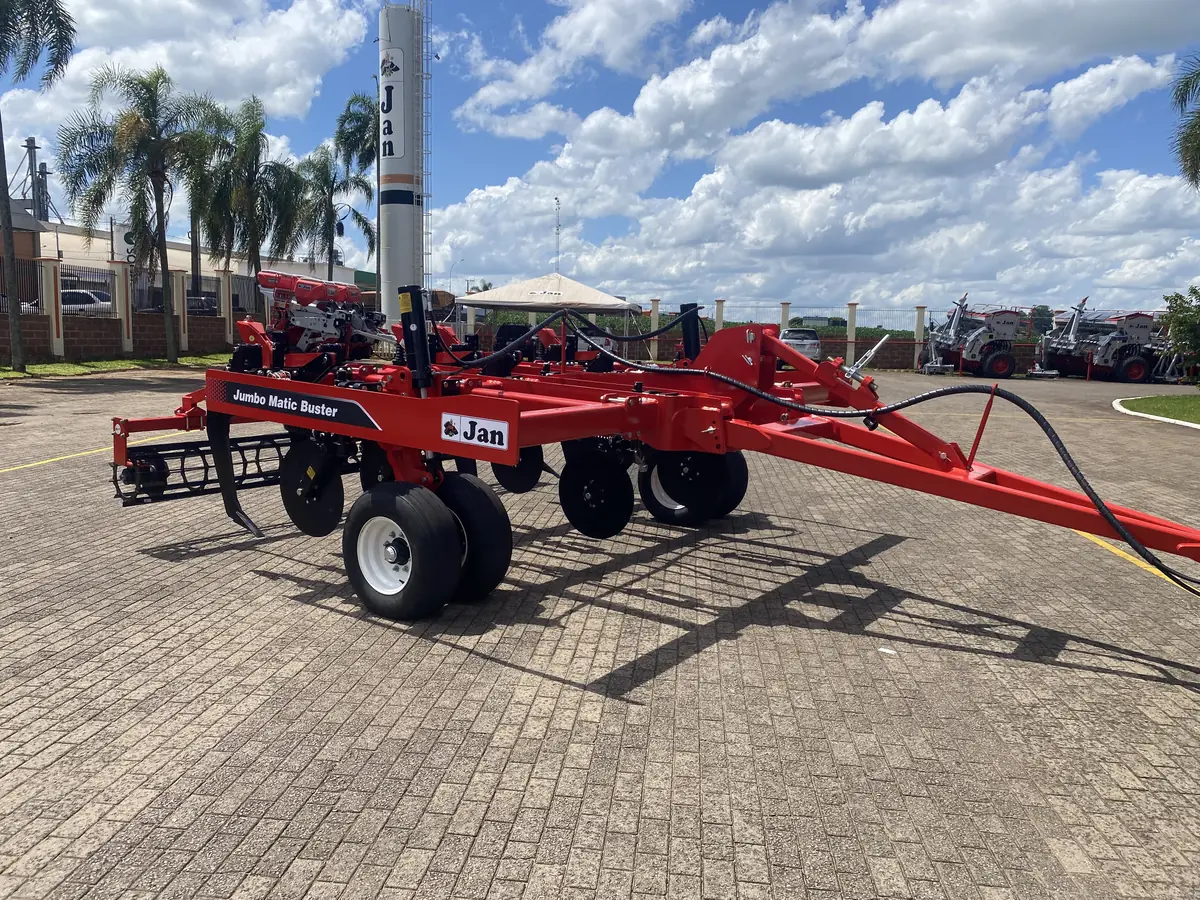

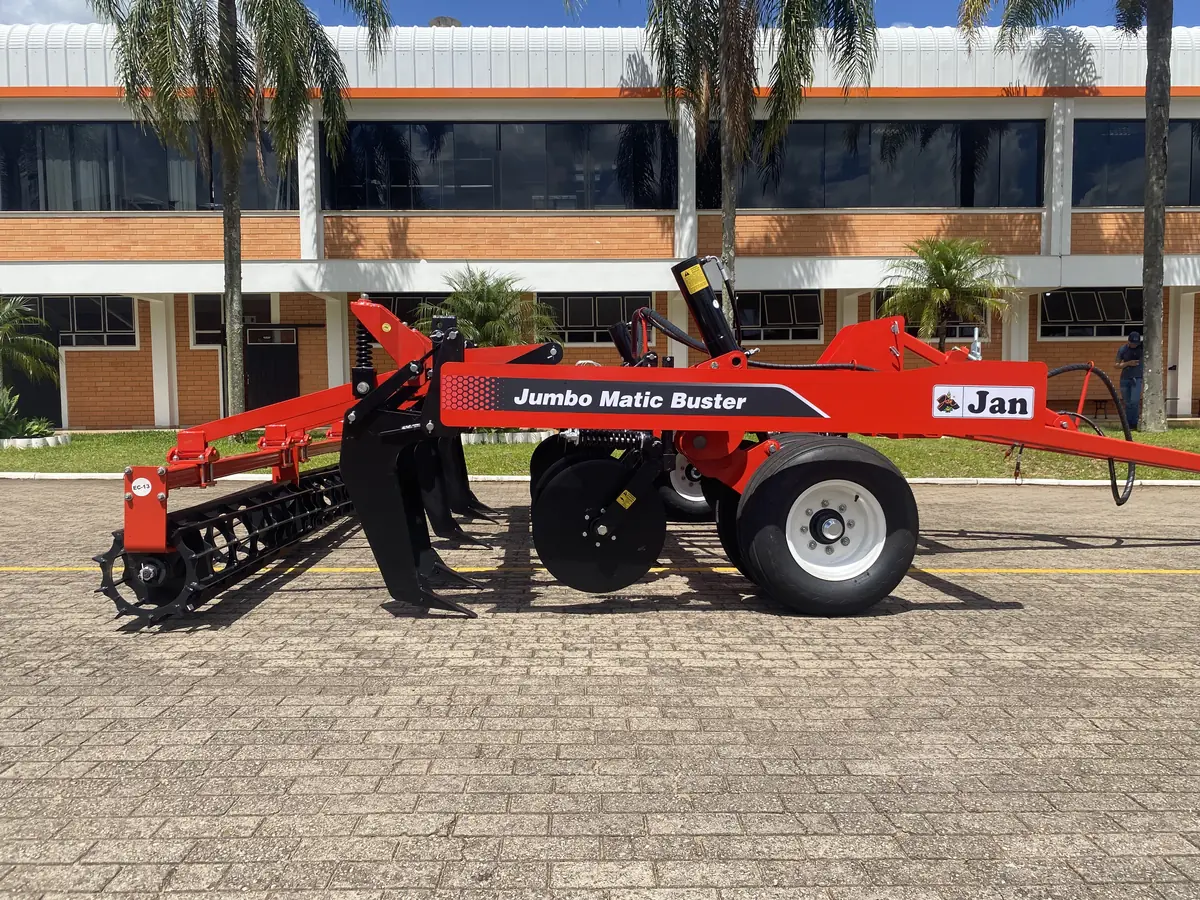

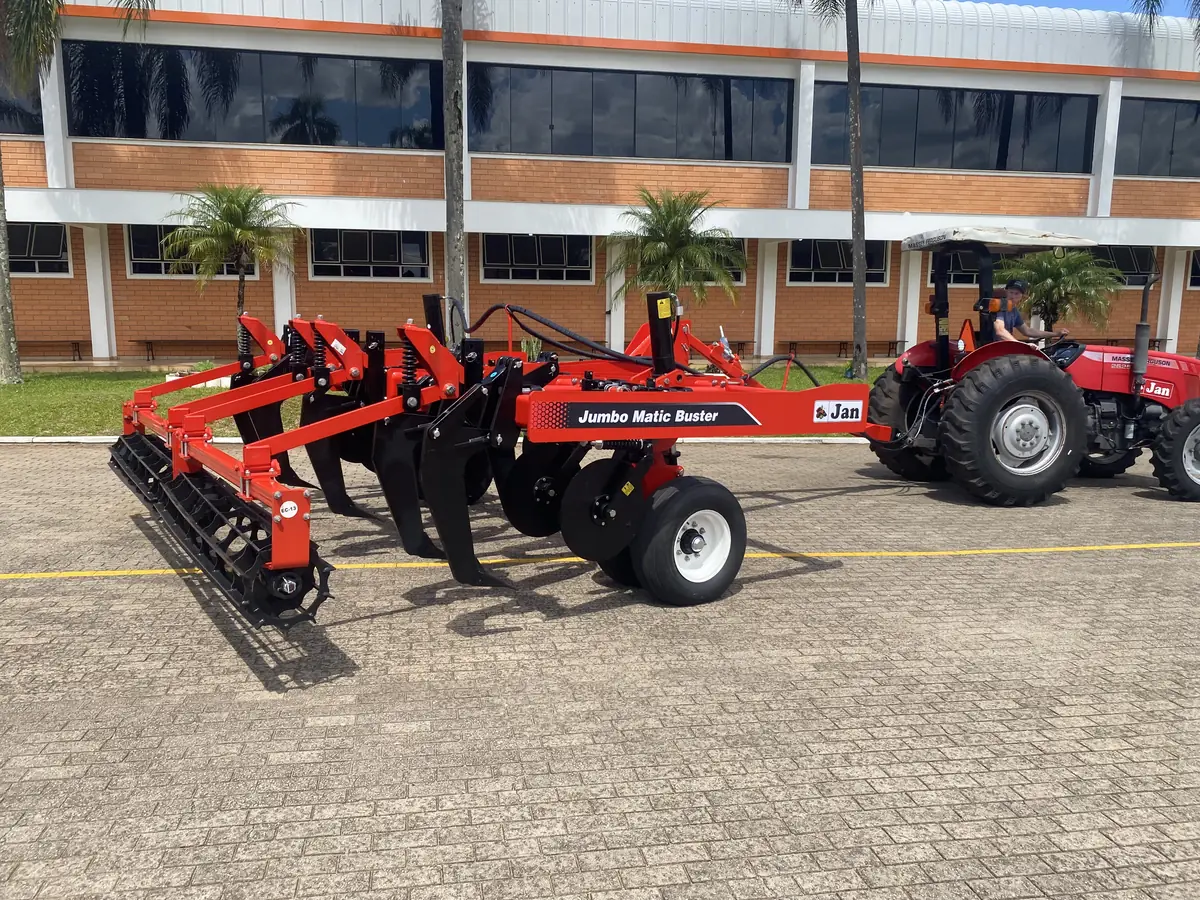

Jumbo Matic Buster 9/7 Heavy Duty
Jumbo Matic Buster 11/9 Heavy Duty
Jumbo Matic Buster 9/7 Heavy Duty
Jumbo Matic Buster 11/9 Heavy Duty
Features a shank safety system that releases the flat spring when it encounters the correct resistance, ensuring straight and consistent operation. The spring automatically resets when the implement is hydraulically lifted.
22-inch cutting disc positioned in front of each shank.
Rollers equipped with oil-bath bearings.
Reinforced frame.
Dual wheels.
Shank protector kit.
7 shanks with 50 cm spacing.
9 shanks with 45 cm spacing.

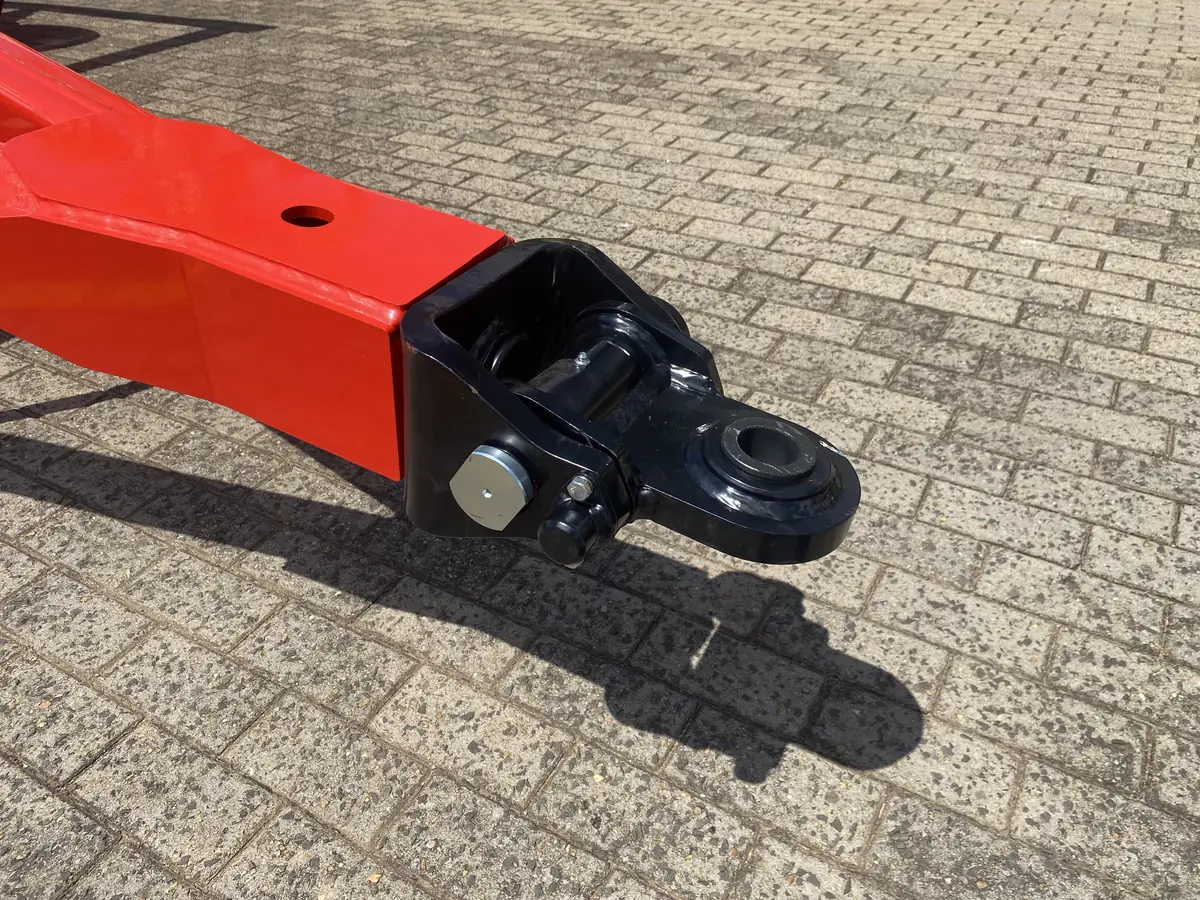

| Hitch system | Drawbar (with hitch head) |
| Minimum required power (hp) | 35 to 40 hp/shank |
| Number of shanks with 600 mm spacing | 7 shanks |
| Number of shanks with 500 mm spacing | 7 shanks |
| Number of shanks with 450 mm spacing | 9 shanks |
| Cutting disc diameter (inches) | 22 |
| Working width with 7 shanks and 60 cm spacing | 4.20 m |
| Working width with 7 shanks and 50 cm spacing | 3.50 m |
| Working width with 9 shanks and 45 cm spacing | 4.05 m |
| Working depth range | 200 to 600 mm |
| Ground clearance under the chassis | 710 mm |
| Chassis width | 4,100 mm |
| Working width of the clod-breaking roller | 3,900 mm |
| Total length without clod-breaking roller | 5,960 mm |
| Total length with clod-breaking roller | 6,900 mm |
| Height | 1,385 mm |
| Running gear | Dual wheels - RIB IMPLEM. RA45 11L-15 10-ply tire |
| Theoretical operational performance with 7 shanks | 1.70 to 2.50 ha/h 2 |
| Theoretical operational performance with 9 shanks | 1.62 to 2.43 ha/h 2 |
| note | 1 - The required power is related to factors such as subsoiling depth and the level of soil compaction and moisture. |
| note | 2 - Tractor travel speed from 4 to 6 km/h. |
| Approximate weight | 3,733 kg |

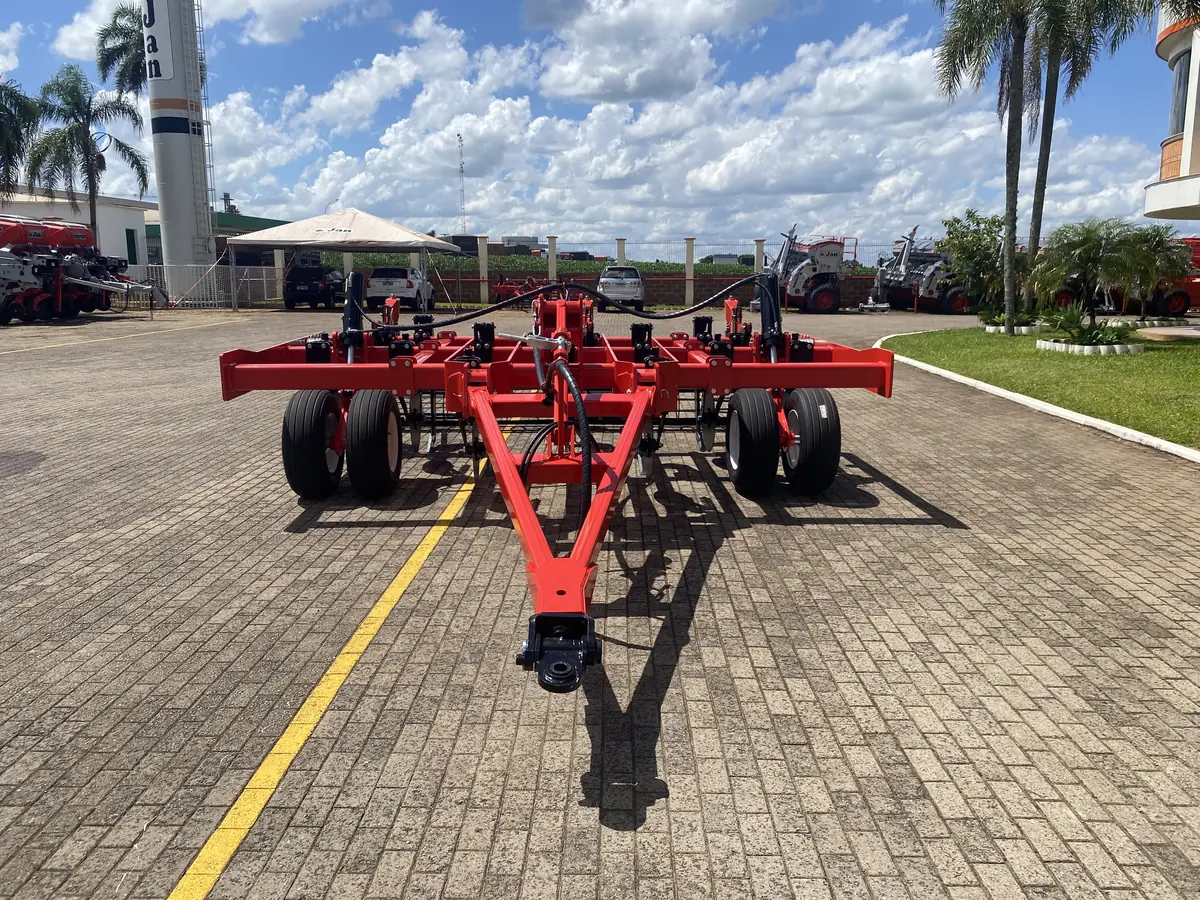

Dual wheels for better load distribution and reduced soil compaction.
Allows mounting in additional positions.
Cylinders connected in series to equalize the lifting of the wheels.

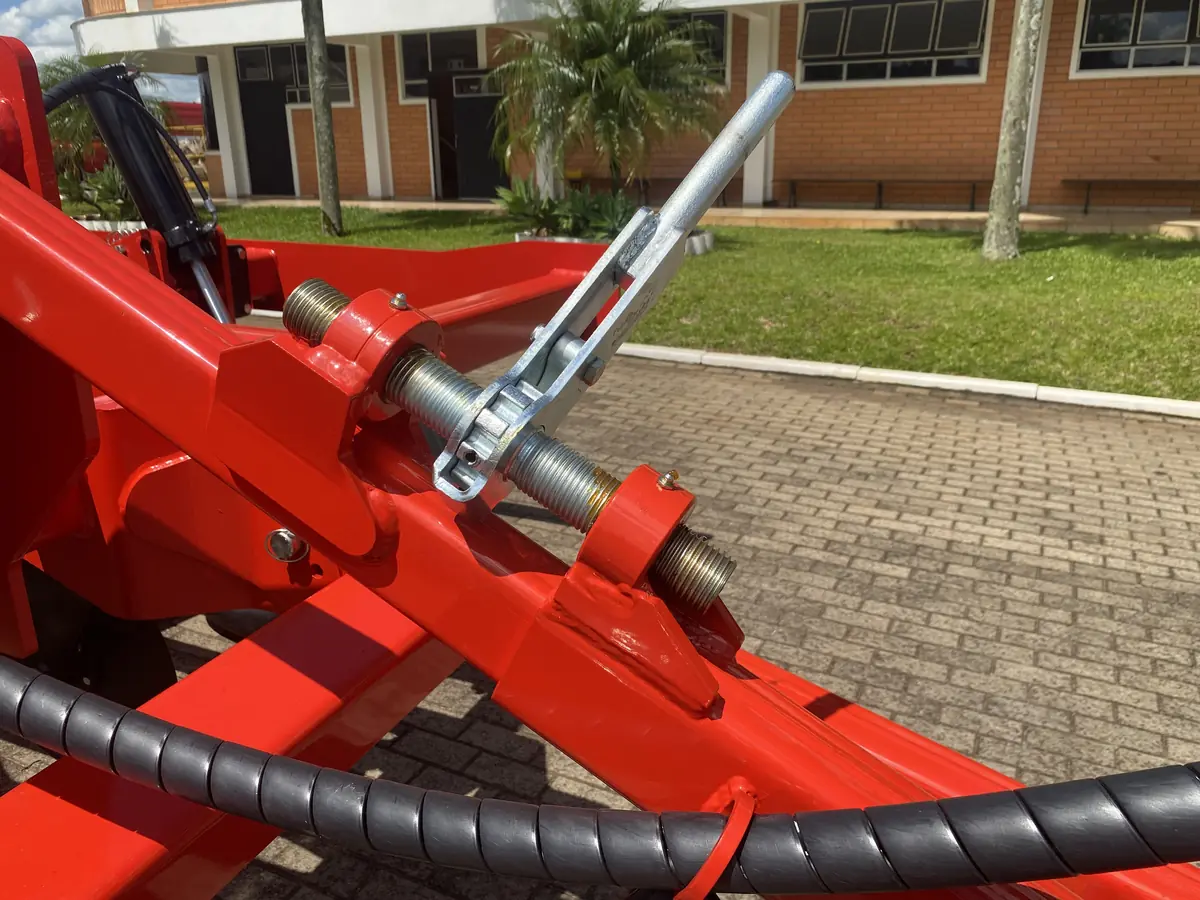

Its adjustment is made through the articulation of the wheels, activated by the tractor's hydraulic system. The depth range is determined by the number of stroke-limiting spacers positioned on the rods of the two hydraulic cylinders, allowing depths of up to 60 cm. The wheels articulate through a linkage arm and are controlled by cylinders connected in series to equalize wheel lifting.
The subsoiler shank breaks up compacted soil layers without excessive soil disturbance, keeping much of the crop residue on the surface and improving porosity and water infiltration. It includes a safety system that releases the shank through a flat spring whenever an obstacle is encountered. Resetting is automatic: simply lift the subsoiler. This makes maintenance simple, increases productivity, and reduces operating costs.
Features specific geometry for subsoiling and is made of cast steel with a special alloy and heat treatment, providing high resistance to abrasive wear.
Smooth 22-inch disc, individual and positioned immediately in front of each shank. It improves cutting of crop residue, prevents clogging around the shank, and offers easy vertical adjustment through a sliding bearing. Dual coil springs allow the disc to follow terrain contours. Its mechanism improves cutting effectiveness without compromising the shank's working depth.

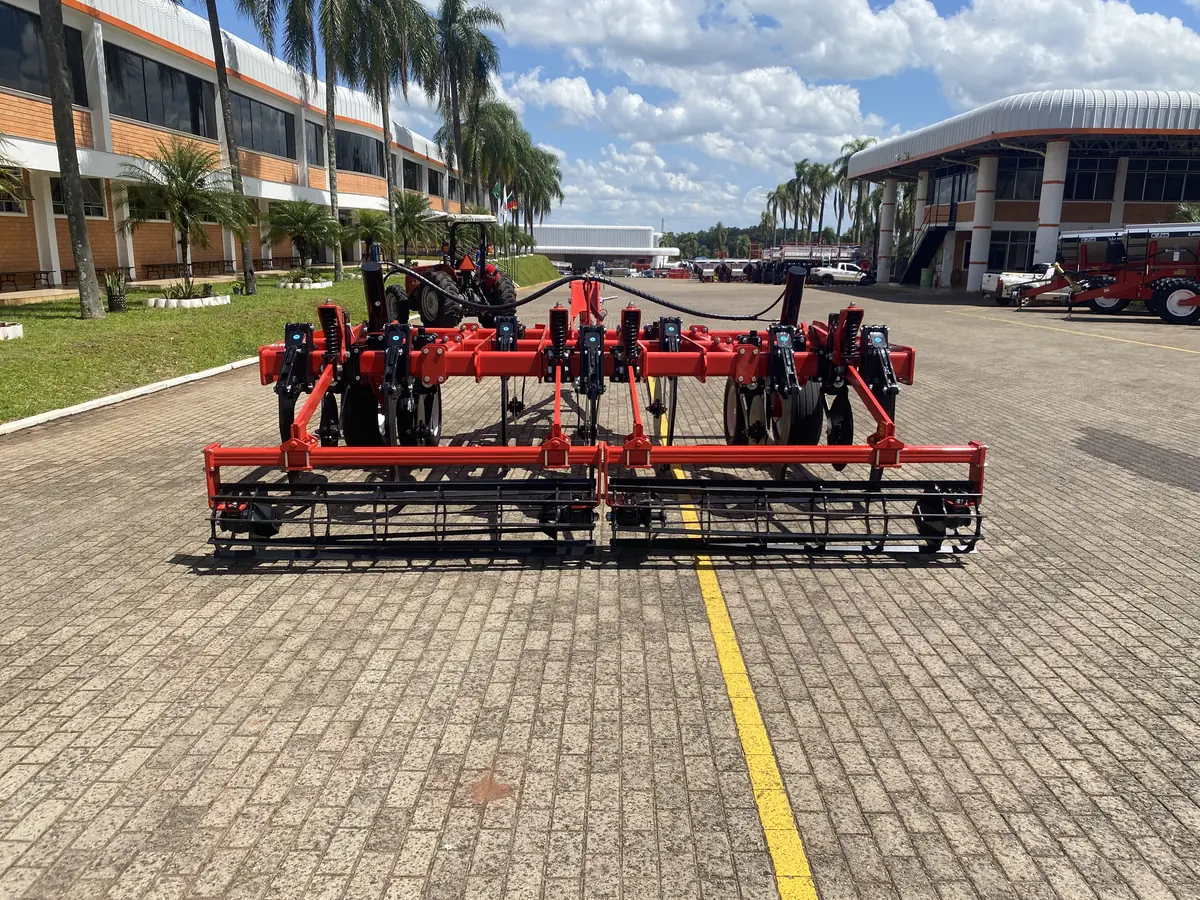

Follows the terrain contours, reducing clod size and leveling the worked surface. Equipped with oil-bath bearings, articulated supports, and coil springs to ensure assembly stability.
