Power Jet 2.000

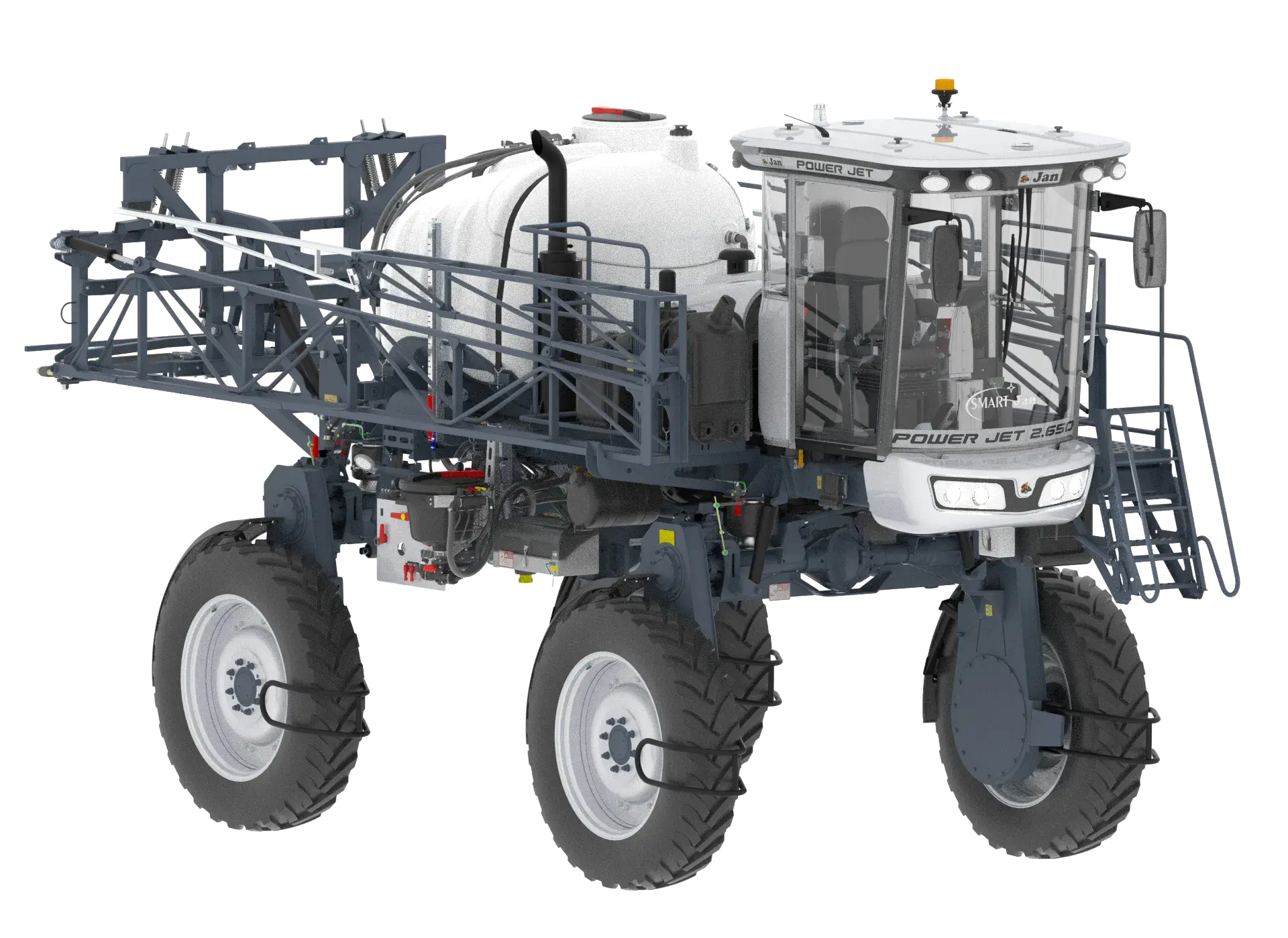

Power Jet 2.650
Power Jet 2.000
Power Jet 2.650
Automatic section cut-off
Hydraulic autopilot
Steering: hydrostatic, load sensing and auxiliary rear steering.
Independent active pneumatic suspension
Mechanical 4x4 drive by DANA 80 self-locking differentials
Transmission to the wheel through ASA 140 chain, the largest on the market
Flexible, bolted chassis, for greater resistance to torsion, traction, bending and fatigue
Work Screen
LED cabin and auxiliary lighting
Booms of 27 meters with 7 sections
Adjustable track width 2.700 to 3.200 mm
320/85 R 36 radial agricultural tire
| Height | 4.100 mm |
| Length | 7.880 mm |
| Width with bars closed | 3.200 mm |
| Ground clearance | 1.280 mm |
| Fixed track width | 2.700 mm |
| Adjustable track width (Optional) | 2.700 à 3.100 mm |
| Turning radius | 7.000 mm |
| Wheelbase | 3.550 mm |
| Approximate empty weight | 8.160 Kg |
| Front axle weight | 4.406 Kg (54%) |
| Rear axle weight | 3.754 Kg (46%) |
| Loaded weight | 10.410 Kg |
| Loaded weight front axle | 4.997 Kg (48%) |
| Loaded weight rear axle | 5.413 Kg (52%) |
| Tipping angle at work | 30° |
| note | 1 - Approximate weight for fixed track width. |
| note | 2 - Tipping angle, with the booms open and 1 meter from the ground. |
Main textured polyethylene (L): 2,000.
Clean water textured polyethylene (L): 250.
Application width (m): 25.
Spacing between nozzles (mm): 500.
Hydraulic suspension with nitrogen accumulator.
Auxiliary lighting for night spraying.
Working height of booms (m):
Spray control, incorporation, and supply valve panel.
Spray pump: UDOR diaphragm, 170 L/min at 550 rpm (hydraulic motor drive).
Spray control: 7-section electronic.
On-board computer: Smart Jan controller.
Nozzle holder: triple Arag.
Spray tips: Teejet.
Washing: With ARAG mixer – 30 L capacity in polyethylene.
Hydraulic system activated by solenoid valves.
Load Sensing hydrostatic steering.
Rear auxiliary steering system.
Individual suspension, which provides lower skid index, improving terrain copying and giving greater stability to the machine.
12-4x36 TM93 tire with 12 plies and inner tube.
MWM SERIES 12 – 4.10 TCA MAR-I130CV@2.200rpm, and 550Nm@1400rpm Turbo Aftercooler.
Mechanical engine that complies with MAR-1 legislation, which defines pollutant emission limits.
Lower fuel consumption;
Polyethylene fuel tank (L): 180
Lower fuel consumption, between 8 and 10 L/h.
Transmission: Eaton FS 4205 B (5 forward speeds and 1 reverse).
Transfer case with cast iron housing, heat-treated high-strength gears, reduction (1.33:1).
Spring-applied parking brake with hydraulic release at the transfer case output.
Differential: Dana 80 Self-locking 1:4.625 Lubricating Oil Type 140 85W140 API GL 5-LS – 5 liters.
| 1ª | 6 |
| 2ª | 11,1 |
| 3ª | 19,8 |
| 4ª | 33 |
| 5ª | 42,2 |
| Ré | 7,6 |
Weld-free side members, made of high-strength steel, thus providing greater resistance to traction, torsion, bending, and fatigue, extending the component's service life.
Other chassis elements made of structural steel bolted to the side members, allowing them to be replaced if necessary.
The walkways allow easy access for maintenance of the engine and hydraulic tank.
Vibration damping cushions.
Pressurized with eco-friendly digital air conditioning and hot air.
Anatomical seat with electro-pneumatic suspension.
Left-side door.
6 mm green tempered windshield with black band, 6 mm smoked tempered rear door and windows with black band.
Radio with USB input.
Compartment for ECUs, 12 and 5 VDC sockets.
Giroflex and LED headlights.
