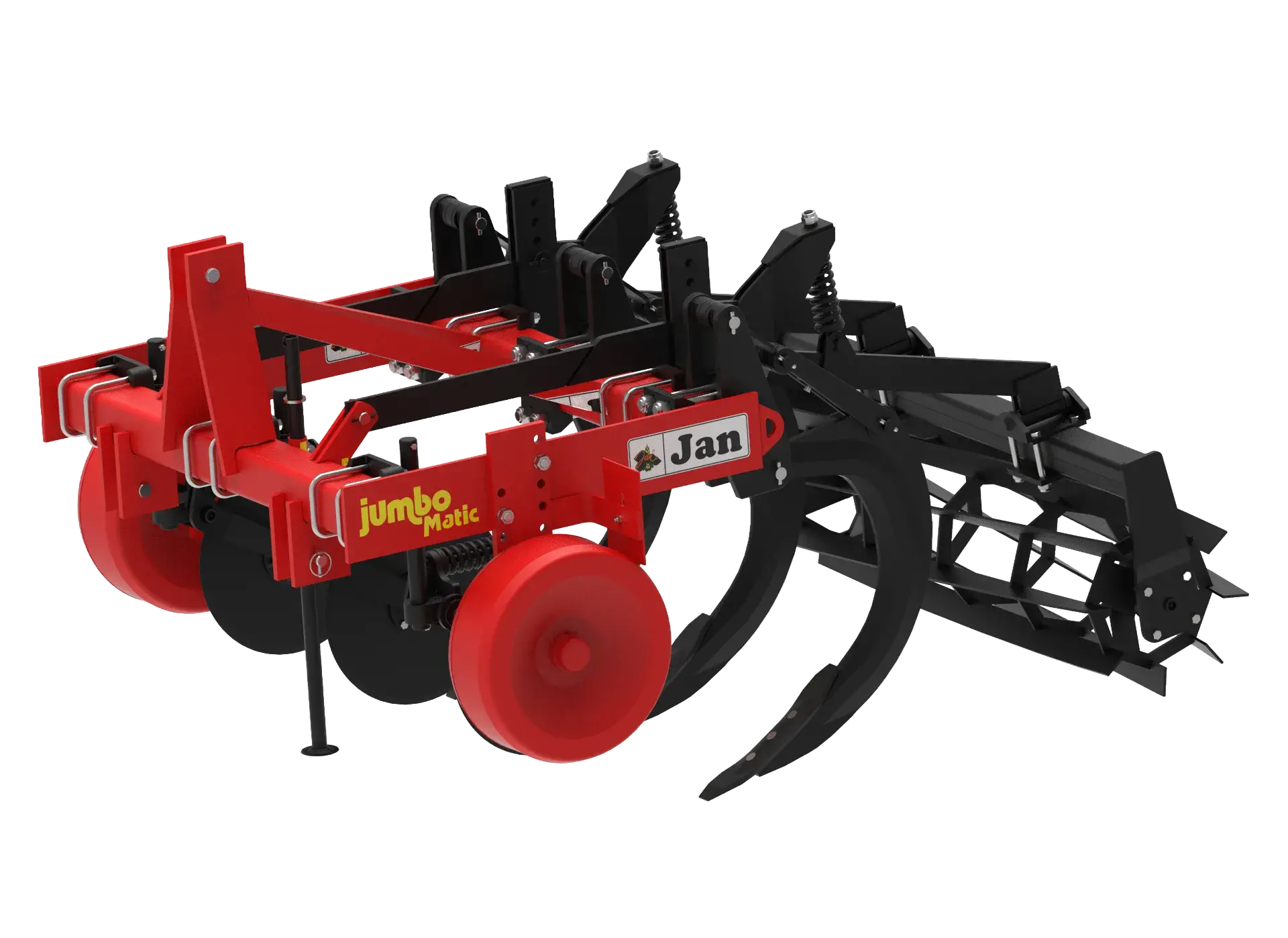

Jumbo Matic Hydraulic 3
Jumbo Matic Hydraulic 5
Jumbo Matic Hydraulic Special 5

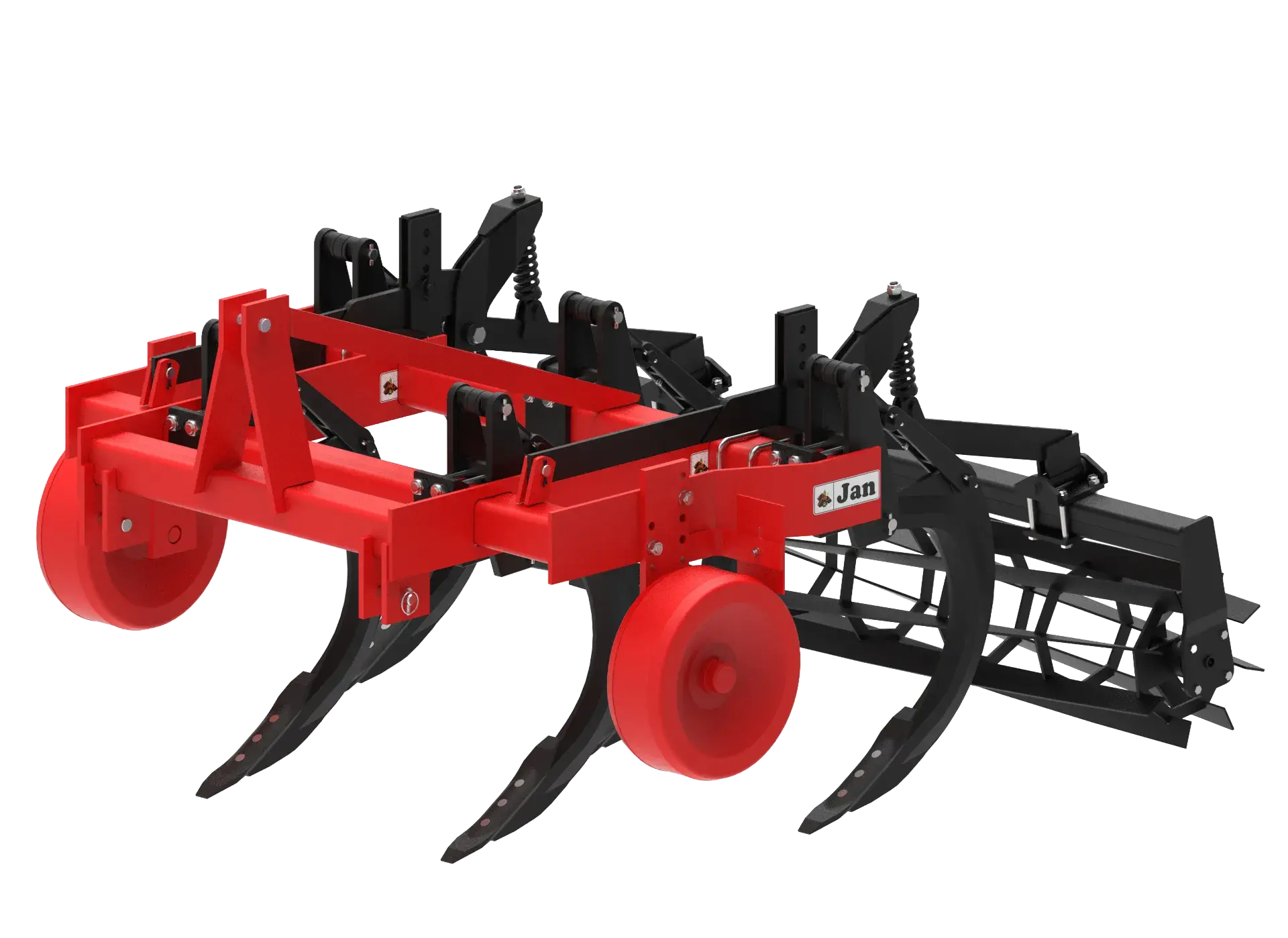

Jumbo Matic Hydraulic Special 7
Jumbo Matic Hydraulic 3
Jumbo Matic Hydraulic 5
Jumbo Matic Hydraulic Special 5
Jumbo Matic Hydraulic Special 7
Features a shank safety system that releases the flat spring when it meets the correct resistance thus ensuring straightness in the work performed, automatic spring reset by hydraulic lift.
18-inch cutting disc in front of each shank.
| Hitch system | Three-point |
| Hitch pins | Cat. II |
| Required power | 18 - 20 CV/shank 1 |
| Number of shanks | 3 |
| Distance between shanks | 530 mm |
| Working width | 1.600 mm |
| Working depth range | 200 to 400 mm |
| Ground clearance under the chassis | 640 mm |
| Chassis width | 1.295 mm |
| Total width | 1.760 mm |
| Working width of the laminar clod-breaking roller | 1.420 mm |
| Total width of the laminar clod-breaking roller | 1.471 mm |
| Total length without laminar clod-breaker roller | 1.525 mm |
| Total length with laminar clod-breaker roller | 2.200 mm |
| Height | 1.310 mm |
| Approximate weight | 720 kg |
| Theoretical operational performance | 0.64 to 0.96 2 |
| note | 1 - The required power is related to factors such as subsoiling depth and the level of soil compaction and moisture. |
| note | 2 - Tractor displacement from 4 to 6 km/h. |
Work depth regulation through the articulation of the wheels, driven by the tractor's hydraulic system. The depth range is determined by the number of stroke limiting shims, located on the rods of the two hydraulic cylinders.
With parabolic geometry, the subsoiling arm is a tool that breaks up the compacted layer of soil without causing excessive revolving, keeping a large part of the plant residues on the surface, improving porosity and water infiltration. It is composed of a safety system that disarms the arm by means of a flat spring whenever it encounters any obstacle. To rearm it is automatic, just lift the subsoiler, making the maintenance of the system a simple operation and consequently obtaining greater yield and lower operating costs.
18" plain, individual and located immediately in front of each arm. It offers better cutting conditions of cultural remains, avoids the arm clogging and has vertical regulation through a sliding bearing and easy regulation, with double helical springs, which allows the disc to follow the terrain undulations. Its mechanism offers greater cutting effectiveness without compromising the working depth of the arm.
It follows the topography of the land, reducing the size of the clods and leveling the surface of the worked area, with a system of articulated supports and helical springs that cause effective compression to the soil, regardless of the topography of the area.
