Tanker 15.000 Tubo Frontal
Tanker Magnu 20.000 Tubo Frontal - 2 Rodas
-webp.webp "Jan Implementos Agrícolas Tanker Magnu 20.000 | Tubo Frontal - 4 Roda")
Tanker Magnu 20.000 Tubo Frontal - 4 Roda
-webp-(1)-webp.webp "Jan Implementos Agrícolas Tanker Magnu 25.000 | Tubo Frontal")
Tanker Magnu 25.000 Tubo Frontal
-webp-(1)-webp.webp "Jan Implementos Agrícolas Tanker Magnu 25.000 Inox | Tubo Frontal")
Tanker Magnu 25.000 Inox Tubo Frontal

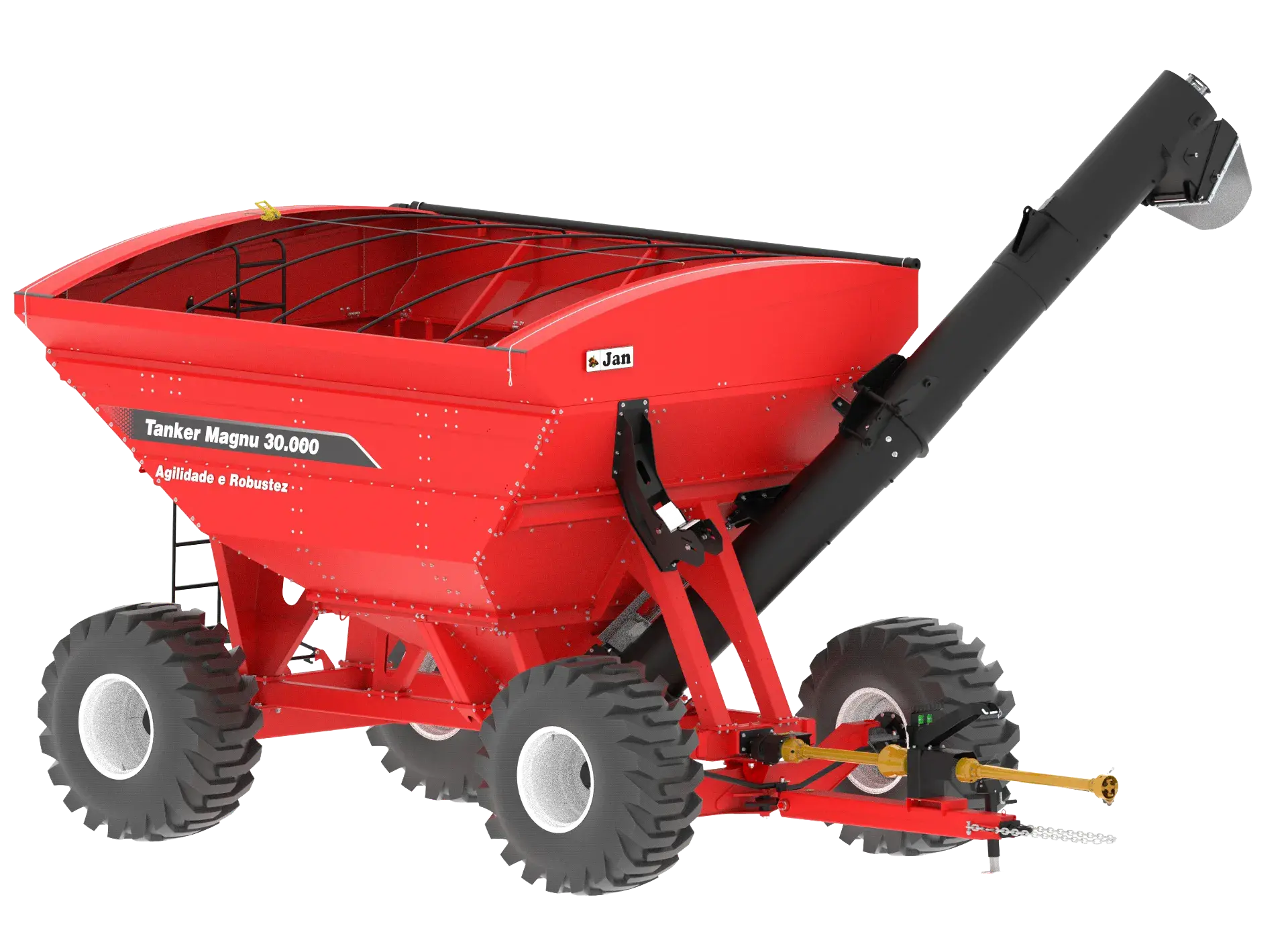

Tanker Magnu 30.000 Tubo Frontal
Tanker 12.500 Tubo Frontal
Tanker 15.000 Tubo Frontal
Tanker Magnu 20.000 Tubo Frontal - 2 Rodas
Tanker Magnu 20.000 Tubo Frontal - 4 Roda
Tanker Magnu 25.000 Tubo Frontal
Tanker Magnu 25.000 Inox Tubo Frontal
Tanker Magnu 30.000 Tubo Frontal
Tanker 12.500 Tubo Frontal
Unloading capacity of 150 bags per minute.
Hardened worm screws.
Upper thread mounted on springs.
Product flow control caps, positioned at the front of the tank with wooden guides.
Front tube for better visibility when unloading grain and for maneuvering.
Easy Enlona Kit
Multipurpose Discharge Pipe
Multi-purpose hose nozzle
Axle with Brake
23.1-26 tire DW 20x26 rim (Standard)
18.4-34 tire DW 16x34 rim
23.1-30 tire DW 20x30 rim
18.4-30 tire DW 16x30 rim
24.5-32 tire DW 21x32 rim
28.1-26 tire DW 25X26 rim
| Coupling system | TOW BAR |
| TDP rotation | 540 rpm |
| Volumetric capacity | 12.500 L |
| Capacity in bags (soybeans) | 156 |
| Grain discharge pipe diameter | 370 mm |
| Unloading capacity (bags/min) | 150 |
| Unloading capacity (bags/min) Estimated unloading time | 1’04” min |
| Grain discharge height | 3.975 mm |
| Gauge | 2.678 mm |
| External tire width | 3.260 mm |
| Overall width | 3.350 mm |
| Total height | 3.286 mm |
| Height on the left side of the machine | 3.223 mm |
| Height on the right side of the machine | 3.022 mm |
| Overall length | 6.260 mm |
| Empty weight with tires | 2.750 Kg |
| Minimum power required | 110 à 130 CV |
| Optional kit | EASY CANVAS SYSTEM |
-webp-1749644395869.webp)
-webp-174964439553.webp)
-webp-1749644395817.webp)
Gravity feed system;
Product flow control covers, positioned at the front of the tank with wooden guides;
Cylinder for opening and closing the flow control cover (gate), positioned above it. Directly activates the cover;
Support bearing for the upper worm screw of the discharge pipe, mounted under coil springs;
Hardened worm screws;
Ladder positioned at the rear of the tank with hinge for transport;
Wheels, header, side reinforcements, and discharge pipe are removable;
Axle ends with quick-change system.
Cardan shaft driven by tractor PTO 540/540 rpm;
Oil-bath transmission box;
Headlight for lighting the discharge pipe, providing better nighttime visibility.
Coupling attachment to the tractor's drawbar with ball joint.
Hub with 10 holes;
Axle ends with quick-change system;
Axle with two wheels.
Storage compartment made of removable carbon steel sheet.
Arches for canvas;
Rear light: hazard warning light, directional indicator, brake light, and reverse light.
Pyramidal Tanker Prospectus front tube
Manual 1
