Double conveyor 80 centimeters wide
Three-point conveyor drive
Transmission ratio for low and high doses
Two models of placement funnel
Protection arch kit on the spreading discs
Device for Band Distribution poultry litter
Bracket for box extension (300 mm)
| Coupling system | Drawbar |
| Volumetric capacity | 3150 L |
| Maximum load capacity with limestone (1500kg/m3) | 4725 kg |
| Required power | 80 a 95 CV |
| Spreading width | 10 a 16 m |
| Wheels (tire/rim) | 14.9 – TM 95 8 Ply – W12-28 |
| Adjustable wheel track width | 1880 mm mín. / 2360 mm máx. |
| Disc rotation | 612 rpm |
| PTO rotation | 540 rpm |
| Track width | 1635 |
| Ground clearance under the axle | 570 mm |
| Height of the discs above the ground | 700 mm |
| Height | 1920 mm |
| Width with running gear closed | 2260 mm |
| Length | 5050 mm |
| Approximate empty weight w/ tires | 1600 kg |
Conveyor belt for distributing organic fertilizer and powdered products (dry and wet).
3-point conveyor belt traction.
Conveyor belt protective deflector, located on the inside of the hopper, arranged longitudinally to the conveyor belt movement.
Central and side belt speed transmission system, equipped with single roller chain gears that allow for three different combinations.
Front and side cardan shaft with protection.

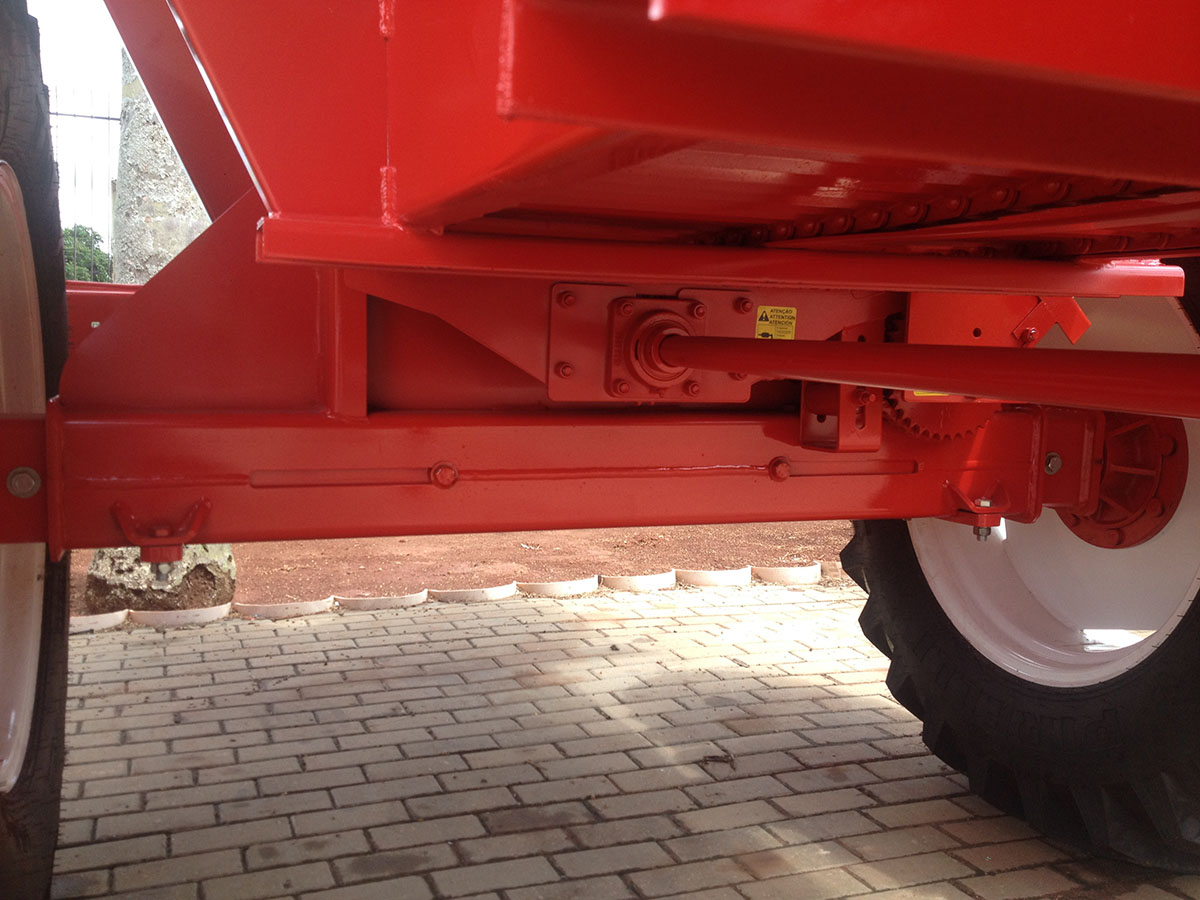

Oil-bath crown and worm gear reducer with fuse pin system.
Two distribution discs with four straight vanes, offering four angle adjustment options.
Two hopper models:
The distribution discs are driven by a transmission with shafts and universal joints.
Front universal joint with protection.
Transmission box with free rotation in oil bath.
Single wheel
Wheel axle ends with quick-change system.
Deposit made of carbon sheet metal, with side reinforcements to the chassis.
Attach the header to the tractor's drawbar.
